• 4x30A or 6 x 16A output
• Current measurement on each output
• 4 or 6 push button inputs
• 2x4 or 2x6 indicator LED output
• CAN bus connection
• 16A version is suitable for LED dimming
• Each output has an electronic fuse function, the output release current, permitted overcurrent level and time can be set from the menu
• For emergency operation ATO (automotive industry) blade fuse sub-assembly
• NMEA2000 connection

Optional remote control module

• CAN bus input
• 4 vagy 6 nyomógomb kezelés
• 2x4 or 6 indicator LED outputs

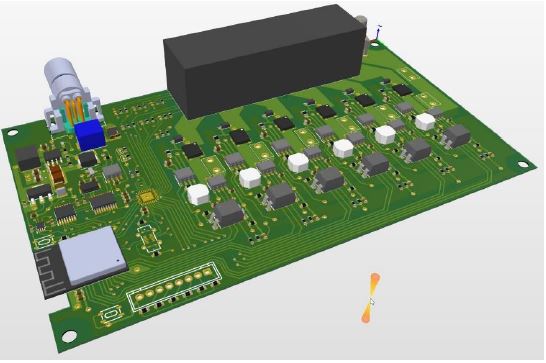

The module can connect 4 or 6 high-power consumers, measuring the current of each consumer. The relays can be switched with a push button or from the smart system, a status indicator and an error LED can be connected to each output . Optional remote control module. which enables control with buttons and indicator LEDs located further from the relay module using 2 wires (with can bus protocol).
